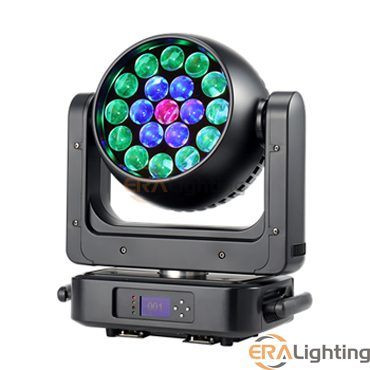

19x25W RGBW 4in1 Led Zoom Wash Moving Head Light
Model Number: YY-L1925Z
ERA 19x25W RGBW 4in1 Led Zoom Wash Moving Head Light has advanced and highly efficient proprietary optical system, coupled with high power 5 color wash luminaire, featuring (19) 25W multi-chip LEDs including Red, Green, Blue, White, and CTO, delivers an 8° narrow beam as well as 60° wide coverage.
Light Source: 19x25W RGBW 4in1 Leds
Power: 500W
Zoom Range: 8° -60° Motorized Zoom
Dmx channels: 15/27 Channels
Effect: Strobe and Selectable Dimming Curve Effects
Features:
- Extremely small, fast and powerful LED Moving Head Beam Zoom Light;
- Wide zoom range from 8 degree to 60 degree;
- Great built-in lighting shows programs under master/slave mode;
- Blue LCD display for easy navigation;
- Perfect for stage, theatre, TV, studio, rental and discotheques.
◆Light Source
LED: 19pcs 25W 4in1 LED lamps
Lifespan: 50, 000h
Color: RGBW 4in1 colorful
◆Power Supply
Related voltage: AC100V-240V, 50/60Hz
Related power: 500W
◆Optics
Beam angle: 8-60degree
Dimmer: 0-100% linear dimmer
Strobe: 1-25 times/second
◆Light Output
Illuminance: 140500 Lux (full @3m 10°)
Optimal projection distance: 4-50m
◆Movement
Pan(X axis): 540°
Tilt(Y axis): 270°
◆Control
Control mode: DMX-512; Mater/slave mode; Demo mode
DMX channel: 15CH/27CH
Display of control panel: LCD display, four buttons
◆Construction
Body dimension: D350*W200*H400mm
Net weight: 9.5kg
Shell color: black
Shell material: ABS
◆Working Environment
Working temperature: -25-40℃
Cooling: Fan
Protection rating: IP20
◆Package
Carton board box package: 390*300*450mm(1pc/carton)
N.W/G.W: 9.2kg/10.5kg
Carton board box package: 450*570*540mm(2pc/carton)
N.W/G.W/V.W: 19kg/23kg/28kg
Flight case package size: 820*700*610 (4pcs/case)
Flight case net weight: 33kg
N.W/G.W/V.W: 37kg/68kg/71kg
