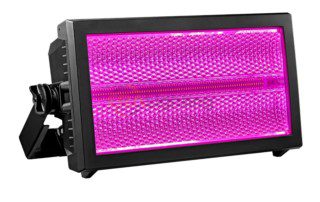

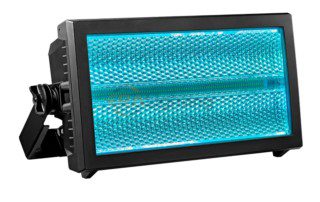

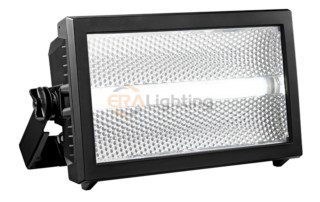

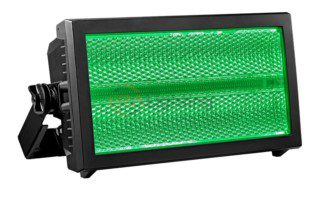

Atomic 3000 Led Strobe Effect Light

Model Number: YY-S3000

ERA 3000 Led Strobe not only a strobe, but also a creative tool that incorporates backlight illumination with RGB-controlled LEDs pointing into the reflector. It delivers stunning eye candy looks similar to the MAC Aura™ and the MAC Quantum™ Wash.

LED Source: 228x3W white LEDs (Strobe ) 64x 0.6w RGB LEDs (backlight) array

Brightest LED-based strobe on the market

DMX modes: 3/4/14 channels

Control: LED and Xenon mode available via menu and DMX control channel

Unique RGB-controlled Aura backlight for stunning eye candy looks

Setting: Control panel with backlit monochrome display

Product Description

ERA 3000 LED Strobe is the perfect blend of a traditional strobe and cutting-edge LED technology. It offers the same extreme brightness as its iconic predecessor, but with substantially lower peak power consumption.

Technical Specifications

Light Source

228x3W white LEDs (Strobe ) 64x 0.6w RGB LEDs (backlight) array

Channels/Control

DMX Channel: 3/4/14 Channels

DMX512, master and slave and auto run

Others

Strobe: 0.289 – 16.667 Hz, variable flash rate, intensity and duration

Special effects: Blinder, ramp up/down, random flash, lightning. spikes, pre-programmed FX
Aura (secondary LED array illumination) color mixing: RGB

Beam (strobe) array Light source: 228pcs x 3W white color LED
Resolution: 8-bit Dimming, above 16.7% output intensity: Current-controlled, flicker-free
Dimming, below 16.7% output intensity: PWM (refresh rate 6000 Hz)
Minimum LED lifetime: 50 000 hours

Aura (backlight) array Light source: 64pcs x 0.6W RGB LEDs
Resolution: 8 bits per color plus 8-bit dimming
Dimming: PWM (refresh rate 1001 Hz)
Minimum LED lifetime: 50 000 hours

AC power: Neutrik PowerCON TRUE1 male socket
DMX data in/out: 5-pin locking XLR
